Restore normal cooling and kill the freezer buzz with this WR60X10141 evaporator fan motor. This is the small motor behind the back panel of the freezer section that pushes air across the evaporator coils into the fresh food compartment. When it fails, the fridge warms up, frost builds on the coils, and you hear squealing or grinding from the back wall. Swapping the motor is a fraction of the cost of a new refrigerator.
What You Get
-

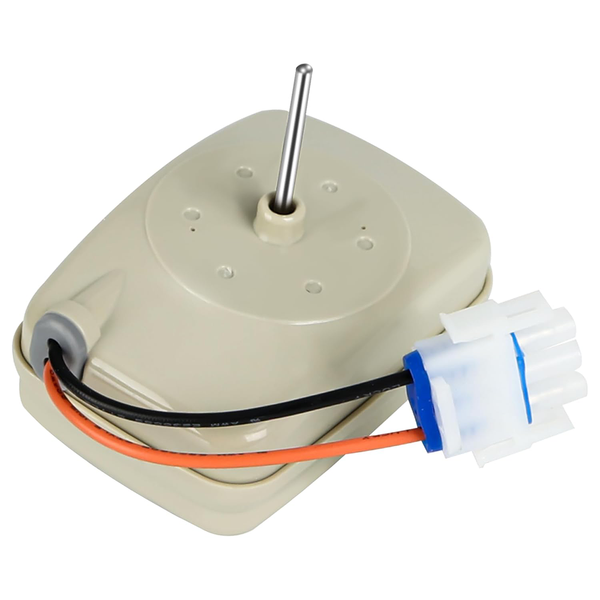

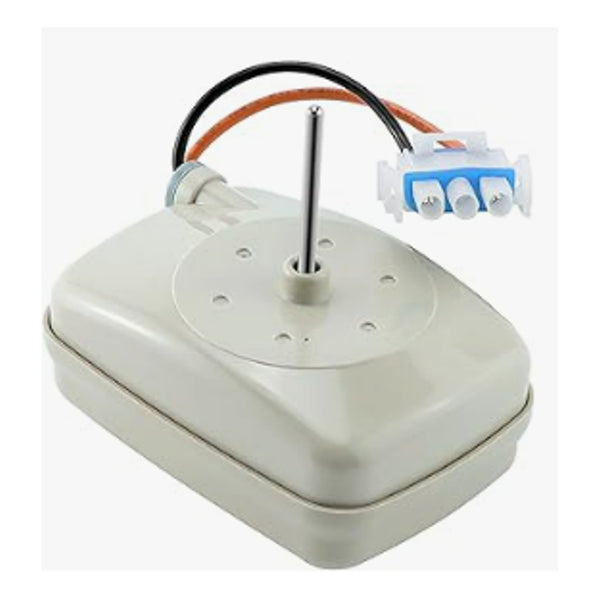

1 x WR60X10141 Evaporator Fan Motor with pre wired 3 pin harness connector
-
Motor housing plus 1 3/8 inch shaft, fan blade not included, reuse your existing blade
Part Number Cross Reference
-
WR60X10141 replaces: WPWR60X10141, WR60X31522, WR60X23584, WR60X10346, WR60X10045, WR60X10046, WR60X10072, WR60X10138, WR60X27646, WR60X28783, AP5955766, AP3798650, PS10063450, PS966999, ERWR60X10141, SM10141
Electrical And Size Specs
-
Voltage: 115V AC
-
Frequency: 60Hz
-
Wattage: 3W
-
Shaft Length: 1 3/8 inches
-
Shaft Diameter: 1/8 inch
-
Connector: 3 pin plug in harness, no splicing required
-
Motor Type: Shaded pole evaporator fan motor, metal and thermoplastic housing
-
Rotation: Matches original GE shaft direction
Compatible Brands
Fits top freezer and bottom freezer refrigerators from GE, General Electric, Hotpoint, Kenmore 363 series, RCA, Americana, Sears built on the GTS, HTS, HPS, HTM, PTS, GTM platforms.
Sample Fitment Models
GE GTS15GBRFLWW, GTS16BBMBLWW, GTS18ABRBLWW, GTS22WCPARWW, HTS16GBSARSS, HTS18GBSARWW, HTM17GCSERSA, PTS22LCSARWW, GTM18GBSARCC
Hotpoint HPE15BTHBRWW, HPS15BTHCLWW, HPS18BTHBRBB, HTF15BBMFRWW
Kenmore 36361142990, 36371542992
Always confirm your fridge model tag inside the fresh food door frame and match the old motor stamp before ordering.
Symptoms This Fixes
-
Refrigerator section too warm but freezer still cold
-
Squealing humming or grinding noise from the freezer back panel
-
Fan blade does not spin when compressor runs
-
Frost buildup on evaporator coils or back wall of freezer
-
Fridge cycles off early or runs constantly trying to catch up
Why Replace The Motor Alone
The evaporator fan only moves air, it is not a heated part. If the blade still spins free by hand and the wiring reads powered at the plug, the motor winding has opened and you do not need a new control board or defrost heater. Reusing your old fan blade and mounting grommets keeps the repair under one simple swap.
Install Notes
-
Unplug the refrigerator before removing the freezer back panel, live 115V at the connector will arc
-
Take a photo of the old motor orientation and blade position before removal
-
Release the 3 pin connector, remove two mounting screws, lift the old motor out
-
Press the old fan blade onto the new 1/8 inch shaft, seat grommets, secure screws, reconnect plug
-
Spin the blade by hand to confirm clearance against the housing, then restore power and confirm it starts when the door switch is held
-
Basic 1/4 inch nut driver, Phillips screwdriver, and needle nose pliers, 20 to 40 minutes for most DIYers
Quality Note
Aftermarket motor built to the published WR60X10141 115V 60Hz 3W spec with 1 3/8 x 1/8 inch shaft and 3 pin GE style harness. Brand names and model numbers are used for compatibility identification only. Not a GE boxed OEM part, but electrically and dimensionally matched to WPWR60X10141.
