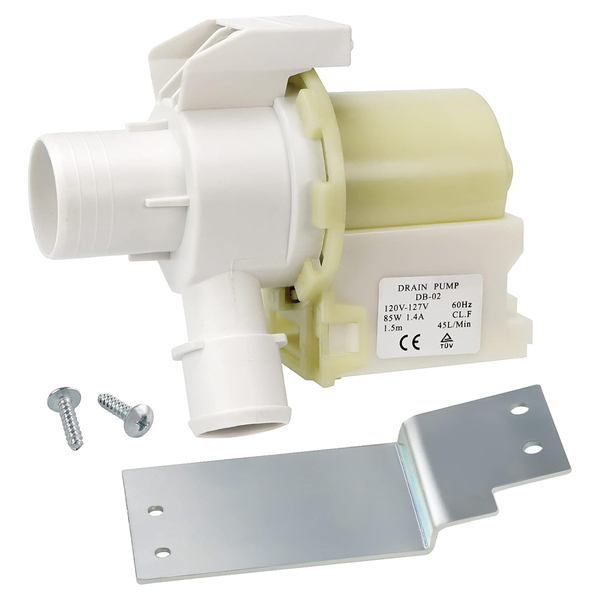

WH23X10030 GE Washing Machine Drain Pump Assembly – Front View with Mounting Bracket and Screws
Aibopart

WH23X10030 Drain Pump Assembly – OEM Replacement for GE Washing Machines

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

  • Exact OEM Fit: This is an OEM-quality replacement part designed specifically for GE and Hotpoint top-load washing machines. Matches original specifications for perfect fit and function.

  • Fixes Common Washer Issues: Solves problems including drainage failure, noisy pump operation, leaks from the bottom of the tub, and error codes related to draining.

  • Complete Assembly: Includes the pump motor and wiring harness for a straightforward installation. No extra parts needed.

  • High-Grade Materials: Constructed with heavy-duty ABS plastic and copper windings to ensure long-lasting durability and quiet performance.

  • Easy Installation: Designed for DIY repair. Direct replacement requires only basic hand tools, saving you time and money on service calls.

Technical Specifications

  • Part Number: WH23X10030

  • Replaces Part Numbers: AP4481488, 1556528, AH2370730, EA2370730, PS2370730, WH23X10004, WH23X10015

  • Voltage/Frequency: 120V / 60Hz (Standard US Power)

  • Amperage: 1.1A

  • Hose Ports: Dual port design (Inlet/Outlet)

Compatible Models (Partial List)

This pump fits numerous GE models. Please verify your model number before ordering. Compatible with popular series such as:

GTW220, GTW330, GTW460, GTW485, GTW680, GTW750, GTW910, HTW240, and HTW265.

Installation Tips

  1. Unplug the washer from the power outlet before starting.

  2. Disconnect the water supply lines.

  3. Access the pump by removing the front or rear panel (refer to your specific model diagram).

  4. Remove hose clamps, detach hoses, unplug the wiring harness, and unscrew the mounting bracket to remove the old pump.

  5. Install the new WH23X10030 pump in reverse order. Ensure clamps are tight to prevent leaks.
