Fix a washer that will not fill or only fills with one temperature. The W11096268 water inlet valve is the dual port solenoid assembly mounted behind the back panel that opens and closes cold and hot water flow into the tub. Each port has its own coil, and the control board energizes them based on your temperature selection and signals from the water level switch. If your washer will not fill, fills with hot only or cold only, fills slowly, or throws LF FL E1 F8 style error codes, this valve is the first part to check before replacing the board.
Built to match the original Whirlpool specification including the blue and red mesh inserts, dual threaded hose ports, and square wire plug. Swapping a failing valve stops slow fills, wrong temperature washes, and silent no fill calls that waste a service visit.
Key Specs
-
Part Number: W11096268
-
Also Marked: W11220230, W10632527, W10758829, W10853296, AP6329544, PS12349461, EAP12349461, 4591408
-
Type: Washer water inlet valve, dual solenoid, hot and cold
-
Voltage: 120V AC, 60Hz (standard US household power)
-
Ports: Two threaded hose connections with blue cold and red hot inserts
-
Harness: Square 2 coil connector
-
Compatible Brands: Whirlpool, Maytag, Kenmore, Amana, Roper, Crosley, Inglis
-
Condition: New, OEM spec replacement
Fits Popular Washer Models
WTW4616FW0, WTW4715EW2, WTW4810EW2, WTW4850HW0, WTW4950HW0, WTW5000DW2, WTW6120HW0, WTW7000DW0, WTW7000DW4, WTW7040DW2, WTW7300DW1, WTW8000DW5, WTW8040DW3, MVWC465HW0, MVWC555DW1, MVW6200KW0, MVW6230HC0, NTW4516FW0, 11020372710, 11026132412, 11027132413 and many more top load builds
Always confirm the model tag on the lid rim or rear panel before ordering. Match the old valve body number to W11096268 or any cross reference above.
Symptoms This Fixes
-
Washer will not fill at all
-
Fills with hot only or cold only
-
Slow fill and cycle times stretch out
-
Error codes LF, FL, E1, F8 on Whirlpool and Kenmore panels
-
Water drips from the back when supply is on but washer is off (seized solenoid)
Why Replace Instead of Living With It
A weak coil opens partially and starves the tub, forcing the board to throw long fill faults. A stuck open coil drips continuously and can flood the floorboard. Replacing this 120V 60Hz valve takes about 30 minutes. Shut off both water supply valves, unplug the washer, pull the top or rear panel, photograph the wire positions, release the hose clamps, unplug the harness, remove the mount screw, and seat the new valve in reverse order. Turn the water on slowly and watch for seeping before closing the panel.
What You Get

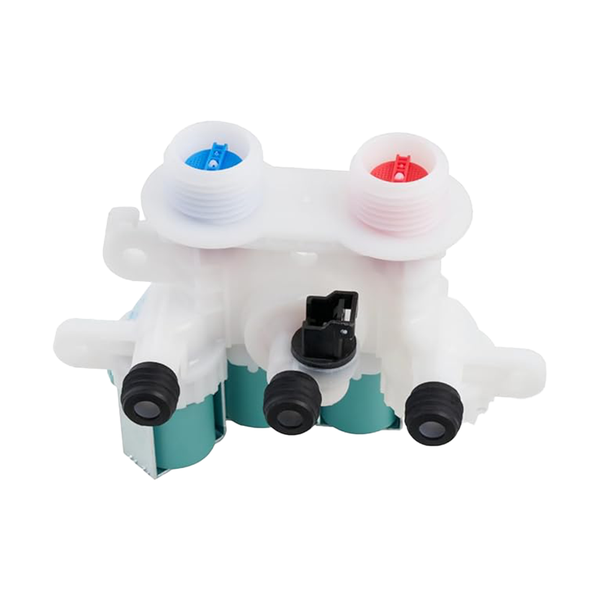

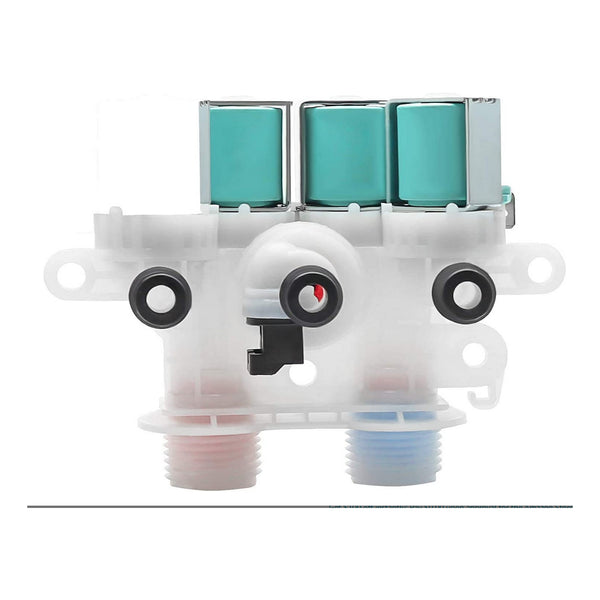

One W11096268 washer water inlet valve as shown with dual ports and wire harness connector. Hose clamps not included unless noted. Ships from US stock for fast delivery.
Restore proper fill speed and correct wash temperatures. Add to cart and leave your full washer model number in the order notes if you want a quick compatibility check.
