Restore full agitate and spin function in one service call. This three-piece set pairs the W10913953 shift actuator with the W10721967 pulley clutch kit and W10006384 drive belt, covering both the electrical shift side and the mechanical drive side of Whirlpool family top-load washers. Replacing all three together eliminates the most common cause of repeat failures after a partial repair.

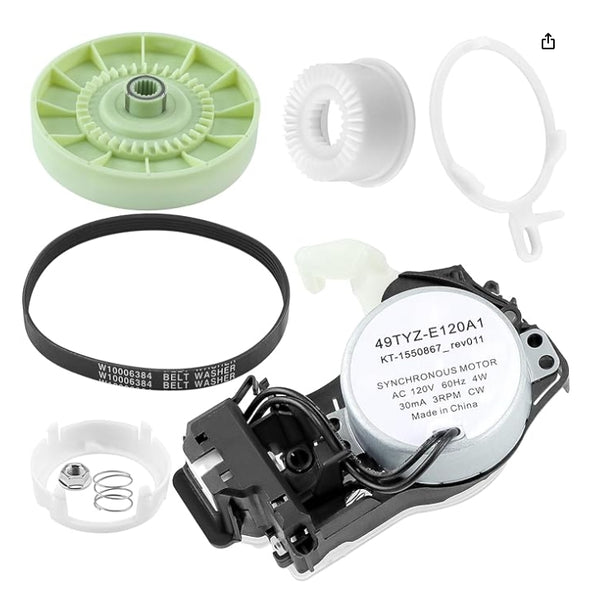

What Is Included
-
1 x W10913953 Washer Shift Actuator – 6 pin synchronous motor, AC 120V 60Hz 4W 30mA 3RPM clockwise, plastic and metal housing, mounts to bottom transmission
-
1 x W10721967 Washer Pulley Clutch Kit – drive pulley, basket drive gear, split housing, compression spring, cam ring, 13 mm nut, retaining clips
-
1 x W10006384 Washer Drive Belt – multi rib rubber belt, approx 21.9 inches long x 0.5 inch wide, 5 ribs 4 grooves
Part Number Cross Reference
-
W10913953 replaces: W10597177, WPW10597177, W10815026, W10913953VP, AP6037270, PS11769864, EAP11769864, 4455082, 49TYZ-E120A1, 50SM21-1-221B, KT-155867_rev011
-
W10721967 replaces: AP5951296, PS10057144, W10006352, W10006353, W10006354, W10006356, W10006382, W10239971, W10239973, W10315818, W10326374, W10536113, W10721967VP, W10818965, W11396423
-
W10006384 replaces: WPW10006384, WPW10006384VP, AP6014712, PS11747978, 1871380, AH2579381, EA2579381, PS2579381, LB6384, LP13725
Compatible Brands
Fits top load washers and stacked laundry centers from Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Admiral, Roper.
Sample Compatible Models
Whirlpool MVWC465HW0, MVWC565FW0, WTW5000DW0, WTW5000DW1, WTW4955HW2, WTW4850HW2, NTW4516FW0, NTW4516FW1, ATW4675EW0, 11022352510, 11022532510, 7MWET4027HW0, WET4027HW0, WGT4027HW0 and many other WTW, MVWC, NTW series machines. Always match your washer model tag before ordering.
Symptoms This Combo Fixes
-
Washer pumps out water but will not spin
-
Will not agitate or agitates weakly
-
Stuck in one cycle position, will not shift wash to spin
-
Grinding or clicking under the tub during cycle change
-
Burning rubber smell from stretched or slipping belt
-
Belt chewed, loose, or thrown off the pulley
-
Clothes come out soaking wet after final spin
Why Replace Actuator And Clutch Belt Together
The W10913953 drives the splutch cam electrically to switch between agitate and spin. The W10721967 pulley and W10006384 belt carry that motion mechanically to the basket. When the actuator fails, the transmission never shifts and the clutch sits under load. When the belt slips, the new actuator still cannot spin the drum. Installing all three resets the entire shift and drive path, avoiding a second teardown two weeks later.
Build And Spec Notes
-
Actuator uses 6 pin connector and synchronous motor rated AC 120V 60Hz 4W 3RPM CW, direct fit to original mount points
-
Clutch kit uses steel shaft cores with reinforced polymer housings and pre loaded spring cam
-
Belt is molded to OEM rib profile for correct grip on motor and pulley
-
If the new belt feels tight on arrival, warm water soak for several minutes makes seating easier
Installation Overview
Moderate difficulty, 45 to 90 minutes. Basic tools: 1/2 inch socket, 1/4 inch ratchet, pliers, flathead screwdriver.
-
Unplug washer and shut off water supply
-
Tilt washer back or lay on its side, brace the cabinet
-
Remove bottom access panel, disconnect actuator harness, unbolt old actuator
-
Swap pulley clutch assembly, remove old belt, seat new belt on motor and pulley
-
Reinstall actuator, rotate basket by hand to confirm smooth travel, restore power
Important Note
This is an aftermarket repair set built to published OEM electrical and dimensional specifications. Brand names and model numbers are shown for compatibility identification only. These parts are not sponsored or endorsed by Whirlpool, Maytag, Kenmore, or Amana.
