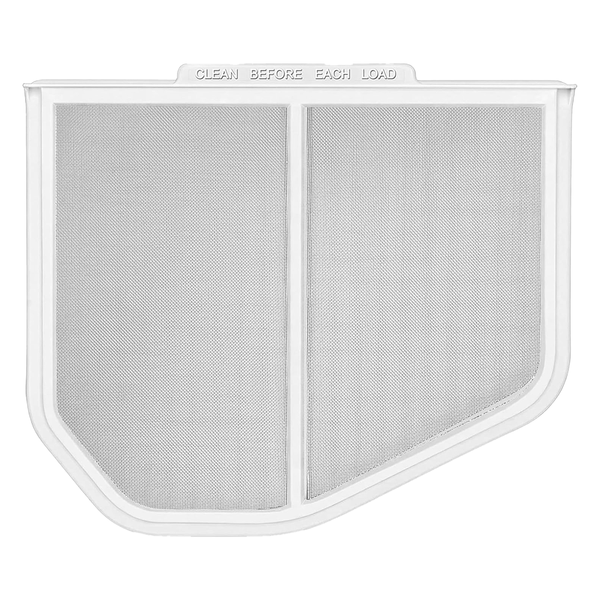

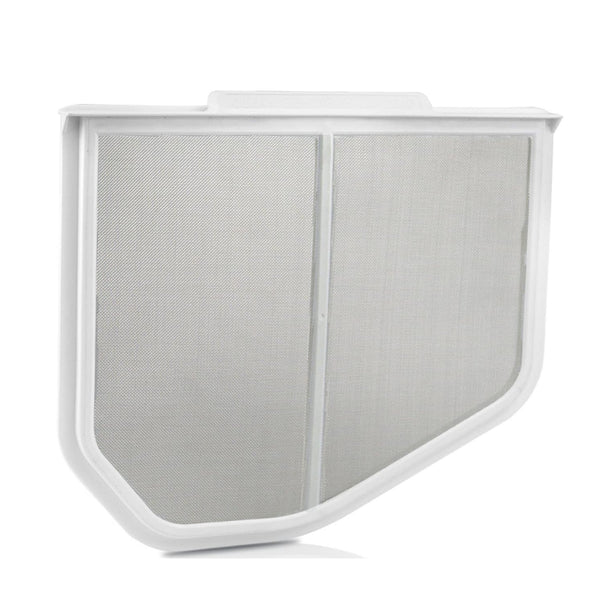

W10120998 Whirlpool Kenmore dryer lint filter screen replacement – ABS frame with metal mesh and center reinforcement bar
Aibopart

W10120998 Dryer Lint Filter Screen Replacement for Whirlpool Kenmore Maytag and Amana Dryers

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Part Number: W10120998

Cross Reference Numbers: 1206293, 3390721, 8066170, 8572268, W10049360, W10049370, W10120998VP, W10178353, W10596627, AP3967919, PS1491676, AH1491676, EAP1491676

Fitment: Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Crosley, Admiral, Inglis front load electric and gas dryers with lint screen in the top front slot (partial model list below)

Type: Aftermarket replacement lint screen built to OEM-style dimensions with center reinforcement bar (not a Genuine Whirlpool OEM part unless stated in title)

Key Features

  • Direct Slide-In Fit for dryers using W10120998, pulls straight up out of the old slot and the new one seats in with no tools

  • ABS Plastic Frame with Metal Mesh Screen and center reinforcement strip to stop bowing and keep the screen flat under airflow

  • Traps Lint Fibers and Debris from tumbling clothes, keeping them out of the exhaust duct and heater housing

  • Restores Drying Efficiency by keeping airflow strong, reducing long dry cycles, overheating and lint marks on fabrics

  • Helps Reduce Fire Risk from packed lint buildup in the screen slot and rear vent

  • Approx Size 12 1/8 x 10 5/8 x 2 1/8 inches (12.5 x 10.5 inches face), white or gray frame depending on batch, matches common Whirlpool WED and Kenmore 110 series filter housings

What It Fixes

Replace your W10120998 lint filter if you see:

  • Torn or ripped mesh screen

  • Cracked warped or broken plastic frame

  • Center bar snapped on the old filter

  • Lint bypassing the screen and collecting in the dryer drum or vent

  • Clothes take too long to dry or come out with lint specks

Compatible Whirlpool Models (Partial List)

WED9200SQ0, WED9200SQ1, WED9400SW0, WED9450WW0, WED9600TA0, WED9600TW0, WED9750WW0, WED9850WW0, WED6600VW0, WED8300SW0, WED8400SB0, WED8500SR0, WED6400SW0, YWED9200SQ0 and more

Compatible Kenmore Models (Partial List)

11060056990, 11060056991, 11067851600, 11067862700, 11067882700, 11077962800, 11077993890 and more

Compatible Maytag Amana KitchenAid Crosley Admiral (Partial)

MED9600SQ0, MED9800TK0, NED7200TW0, YMED9600SQ0, YNED7200TW0 and other models cross referencing W10120998

If your exact model is not listed, send us your dryer model number before ordering and we will confirm fitment.

Specifications

  • Part Number: W10120998

  • Product Type: Dryer Lint Filter Screen

  • Material: ABS plastic frame, metal or polyester mesh, center reinforcement bar

  • Color: White or gray frame

  • Approx Size: 12 1/8 x 10 5/8 x 2 1/8 inches

  • Package: 1 x Lint filter screen

Installation Note

Unplug the dryer before service. Pull the old lint screen straight up from the front slot, vacuum out loose lint in the channel, then slide the new filter down until fully seated. Clean the screen after every load to keep airflow clear and avoid overheating.

Compatibility Disclaimer

This is an aftermarket replacement part. Whirlpool, Kenmore, Maytag and related model names are used only to indicate compatibility. Not affiliated with or endorsed by Whirlpool Corporation or Kenmore.
