Stop chasing repeated washer failures by replacing all three high-wear transmission parts at once. This complete combo fixes the root causes of spin and agitate issues in Whirlpool, Maytag, Kenmore, and Amana top-load washers. Instead of swapping one failing component at a time, install the W10006355 clutch pulley kit, W10721967 gear kit, and W10006384 drive belt together for a true long-term repair.

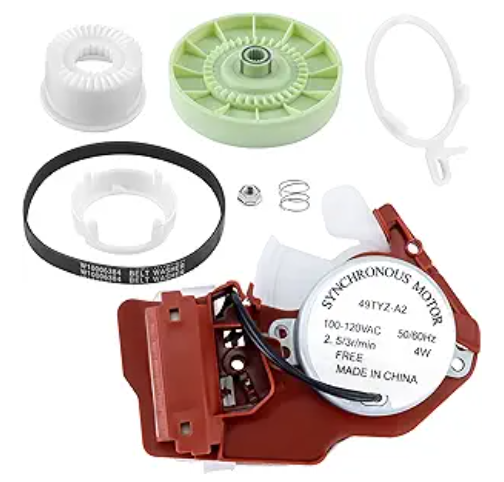

What Is Included
-
1 x W10006355 Washer Pulley Clutch Kit – includes drive pulley, clutch hub, compression spring, cam ring, mounting hardware
-
1 x W10721967 Washer Gear and Clutch Kit – includes basket drive gear, split housing, pulley adapter, 13 mm nut, spring, and retaining clips
-
1 x W10006384 Drive Belt – multi-rib rubber belt, approx 21.9 inches long x 0.5 inch wide, 5 ribs 4 grooves
Part Number Cross Reference
-
W10006355 replaces: AP6014635, PS11747977, 1871379, AH2579380, EA2579380, PS2579380, WPW10006355, W10006355VP
-
W10721967 replaces: AP5951296, PS10057144, W10006352, W10006353, W10006354, W10006356, W10006382, W10239971, W10239973, W10315818, W10326374, W10536113, W10721967VP, W10818965, W11396423
-
W10006384 replaces: WPW10006384, WPW10006384VP, AP6014712, PS11747978, 1871380, AH2579381, EA2579381, PS2579381, LB6384, LP13725
Compatible Brands
Designed for top-load washers and stacked laundry centers from Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Admiral, Roper.
Sample Compatible Models
Whirlpool 1CWTW4740YQ1, 1CWTW4740YQ2, 1CWTW4800YQ1, 11020022010, 11021102010, ATW4675EW0, WTW4700YQ1, WTW4800XQ1, MVWX655DW1, CAW91651700 and many other WTW, MVWX, and CAW series machines. Always confirm your model tag before purchase.
Symptoms This Combo Fixes
-
Washer drains but will not spin
-
Grinding, clicking, or squealing noise from underneath the tub
-
Burning rubber smell during wash or spin cycles
-
Belt keeps slipping off or shredding
-
Dark grease or rubber marks on clothing
-
Agitator moves but basket does not rotate
Why Replace All Three Together
In most Whirlpool top-load washers, these three parts wear as a system. When the pulley splines strip, the gear teeth flatten, and the belt overheats. Replacing only one component almost always leads to another breakdown within weeks. Installing the W10006355, W10721967, and W10006384 together restores correct gear mesh, belt tension, and clutch timing, preventing repeat service calls.
Build Quality And Fit Notes
-
Pulley and gear kits feature steel cores with reinforced polymer housings for strength and reduced vibration
-
Belt is manufactured to OEM profile specifications for proper grip and flex life
-
Kits include necessary springs, nuts, and clips for a complete installation
-
If the new belt feels tight, soak in warm water for several minutes before fitting to ease installation
Installation Overview
Moderate difficulty. Most repairs take 30 to 60 minutes using basic tools: a 1/2 inch socket wrench, pliers, and a flathead screwdriver.
-
Disconnect power and water supply
-
Tilt washer back or lay on its side to access the bottom panel
-
Remove old belt, pulley, and gear components
-
Install new clutch pulley, gear kit, and belt in sequence
-
Manually rotate drum to confirm smooth movement before restoring power
Important Note
This is an aftermarket repair set engineered to meet or exceed OEM specifications. Brand names and model numbers are used for compatibility identification only. These parts are not sponsored or endorsed by Whirlpool, Maytag, Kenmore, or Amana.
