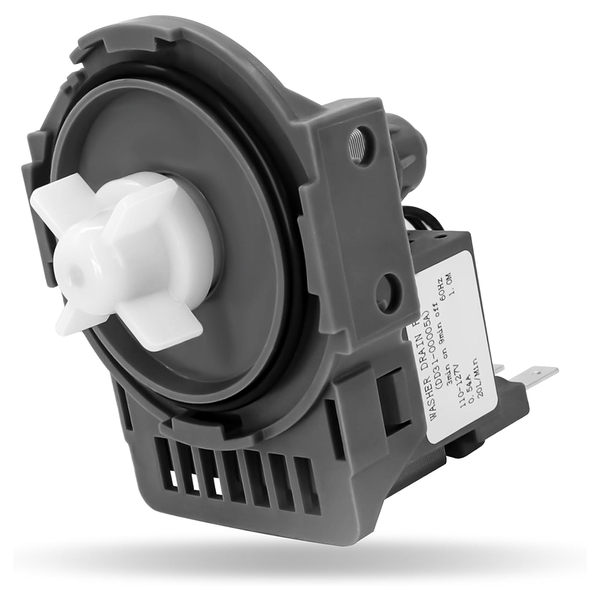

DD31-00005A Samsung Dishwasher Drain Pump Motor Assembly – 120V 60Hz Direct Fit

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Fix a dishwasher that will not drain with a direct fit DD31-00005A drain pump motor assembly. This is the pump mounted under the dishwasher tub bottom that pushes waste water out through the drain hose at the end of every cycle. If your Samsung dishwasher will not drain, leaves standing water, makes a loud buzzing but no flow, or throws a drain error code, this pump is the first part to check before calling a repair tech.

Built to match the original Samsung specification including the sealed motor body, single outlet port, and two wire harness. Swapping a weak or seized pump stops dirty water from backing up into the sump and protects the float switch from false trips.

Key Specs

  • Part Number: DD31-00005A

  • Also Marked: DD3100005A, 1550731, AP4342621, PS4222308, EAP4222308, PD00002014

  • Type: Dishwasher drain pump motor assembly

  • Voltage: 120V AC, 60Hz (standard US household power)

  • Wattage: 45W

  • Compatible Brands: Samsung, Kenmore, Dacor

  • Condition: New, OEM spec replacement

Fits Popular Samsung Dishwasher Models

DW80F600UTS/AA, DW80F600UTB/AA, DW80F600UTW/AA, DW80F800UWS/AA, DW80K5050UB/AA, DW80K5050US/AA, DW80K5050UW/AA, DW80K7050UG/AA, DW80K7050US/AA, DMT300RFW/XAA, DMT300RFS/XAA, DMT400RHS/XAA, DMT400RHW/XAA, DMT800RHB/XAA, DMT800RHS/XAA, DMR57LFS/XAA, DMR77LHS/XAA, DMR78AHS/XAA and many more Samsung built tubs

Always confirm the model tag on the top edge of the door or side wall of the tub before ordering. Match the old pump body number to DD31-00005A or any cross reference above.

Symptoms This Fixes

  • Dishwasher will not drain after cycle

  • Standing water left at the bottom

  • Pump buzzes or hums but no water moves

  • Drain error code on the front panel

  • Water leaks from the bottom because the sump backs up

Why Replace Instead of Living With It

A failing pump lets food debris sit in the sump, grows odor, and can trip the flood float. A seized motor draws high current and may take the control board relay with it. Replacing this 120V 45W pump takes about 30 to 45 minutes. Shut off the breaker, pull the lower access panel, photograph the wire positions, release the hose clamp, unplug the harness, twist the pump lock ring, and seat the new unit in reverse order. Always test with a short rinse cycle before closing the panel.

What You Get

One DD31-00005A dishwasher drain pump motor assembly as shown. Hose clamp not included unless noted. Screens and gaskets are pre seated. Ships from US stock for fast delivery.

Restore a dry tub and stop hand bailing water. Add to cart and leave your full dishwasher model number in the order notes if you want a quick compatibility check.
