Kit Model: Samsung Dryer Heating and Sensor Combo Set
Bundle Includes:
-

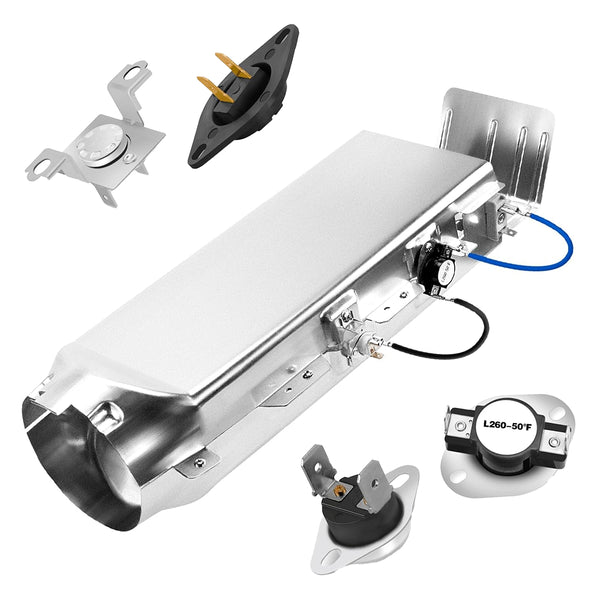

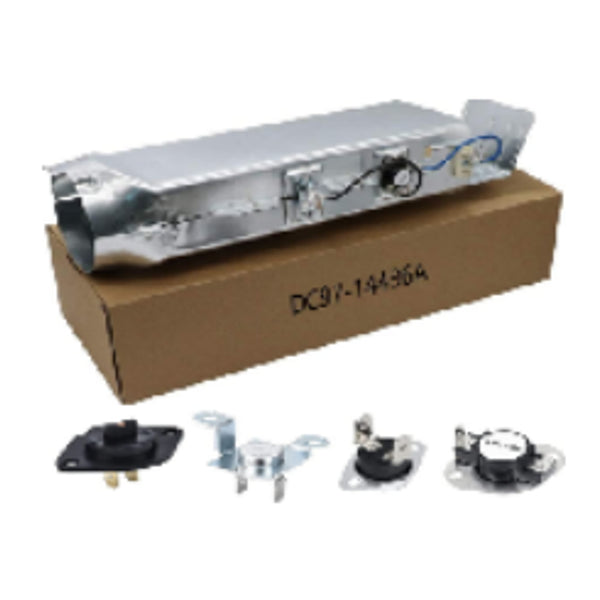

1 x DC97-14486A Dryer Heating Element Duct Assembly (pre-installed with DC47-00019A coil, DC47-00018A high limit thermostat, DC96-00887A thermal fuse with bracket)
-
2 x DC47-00016A Dryer Thermal Cutoff Fuse (blower housing safety fuse)
-
1 x DC32-00007A Dryer Thermistor Temperature Sensor (mounts on blower housing)
-
2 x DC47-00018A High Limit Thermostat (L260-50F, 125/250V 25A, 1/4 inch spade)
-
1 x DC96-00887A Thermal Fuse with Mounting Bracket (320F 160C non resettable)
Fitment: Samsung electric dryers only (not gas), plus Kenmore Elite dryers built by Samsung (partial model list below)
Type: Aftermarket heating system rebuild kit (not Genuine Samsung OEM unless stated in title)
Key Features
-
One Box Heater Rebuild replaces every heat-path failure point at once: heater canister, high limit, thermal fuse, blower cutoff fuse and temperature sensor
-
DC97-14486A Duct Assembly is 240V 5300 to 5400W with nickel chromium coil in galvanized housing, direct slide-in swap for the rear heater box
-
DC47-00018A High Limit Thermostat cuts power at 260F and resets 50F lower to stop overheating and scorched clothes
-
DC96-00887A Thermal Fuse is a one time blow safety device on the heater housing, trips at 320F to prevent fire
-
DC47-00016A Cutoff Fuse sits at the blower housing and kills the circuit if airflow loss causes heat backup
-
DC32-00007A Thermistor reads 10K ohms at 77F and varies resistance with temperature so the board can modulate heat instead of guessing
-
Restores No Heat or Low Heat Conditions caused by open coil, tripped fuse, stuck thermostat or bad sensor reading
-
Tool Light Install after back panel removal, 1/4 inch spade connectors and bracket holes line up with original Samsung layout
What It Fixes
Replace this kit when your Samsung electric dryer shows:
-
No heat but drum still turns
-
Takes two or three cycles to dry one load
-
Heats for a few minutes then shuts off
-
Thermal fuse blows repeatedly after replacement
-
Error codes related to heater or thermistor (check your model manual)
-
Clothes smell hot or dryer exterior gets too warm
Compatible Samsung Electric Dryer Models (Partial List)
DV210AEW, DV218AEW, DV219AEB, DV220AEW, DV203AEW, DV206LEW, DV209AEW, DV305LEW, DV316BEW, DV328AEW, DV330AEW, DV331AEW, DV337AEW, DV338AEW, DV339AEW, DV350AEW, DV407AEW, DV409AEW, DV410AEW, DV419AEW, DV428AEW, DV431AEW, DV448AEW, DV456EWHDWR, DV457GVGSWR, DV42H5000EW, DV42H5200EW, DV42H5400EW, DV45H7000EW, DV45H7200EW, DV48H7400EW, DV203AES, DV40J3000EW, DVE50R5200W, DVE50R5400V, DVE45N5300W, DV500AEW and more
Compatible Kenmore Elite Models (Partial List)
59249045, 59249303, 40289032010, 40289032011, 40289032012, 79669002000, 79680021900, 79681022900, 79681172210, 79681532210 and other Samsung manufactured Kenmore Elite electric dryers
If your exact model is not listed, send us your dryer model number before ordering and we will confirm fitment. Gas dryers do not use this heater assembly.
Cross Reference Numbers
-
DC97-14486A replaces DC97-14486D, DC97-08891A, AP4342351, 1795935, PS2432265, EAP2432265, W10222771
-
DC47-00018A replaces 35001092, AP4201898, PS4205217, WP35001092
-
DC96-00887A replaces DC96-00887C, 2074129, WP35001193, AP4207819, PS4216838, AP5966894
-
DC47-00016A replaces 2068545, AP4201894, PS4205213, L0016A
-
DC32-00007A replaces 35001191, AP4201716, PS4204984, WP35001191, 2068429
Specifications
-
Heater Assembly: DC97-14486A, 240V 5300 to 5400W, approx 20 x 5 inches
-
Element Coil: DC47-00019A style, nickel chromium
-
High Limit Thermostat: DC47-00018A, L260-50F
-
Heater Fuse: DC96-00887A, 320F 160C non resettable with bracket
-
Blower Fuse: DC47-00016A, 185F 85C cutoff
-
Thermistor: DC32-00007A, 10K ohm at 77F
-
Package: 1 x Complete 5 piece heating system kit as listed above
Installation and Safety Note
WARNING: Turn off power at the breaker and lock it out before opening the dryer. Remove the rear panel, photograph every wire position before disconnecting, pull the old DC97-14486A canister out, transfer nothing from the old unit since the new assembly already carries DC47-00018A and DC96-00887A. Mount the DC47-00016A cutoff at the blower housing and clip DC32-00007A onto its holder. Reconnect spades, reinstall panel, restore power and run a timed heat cycle to confirm recovery. If the new fuse blows again, stop and check the vent for blockage before reordering.
Compatibility Disclaimer
This is an aftermarket replacement kit. Samsung and Kenmore model names are used only to indicate compatibility. Not affiliated with or endorsed by Samsung Electronics or Kenmore.
