Stop a Samsung electric dryer from overheating or blowing cold air after a few minutes. The DC96-00887A-GP4 thermal cut-off fuse is the high limit safety device mounted on the heater housing that kills power to the heating element if airflow is blocked and temperatures climb too high. Once it trips, the dryer will not heat until the fuse is replaced. If your dryer heats for ten minutes then blows cold, will not restart heating, or the element glows red but the drum stays cool, this fuse is the most common fix.

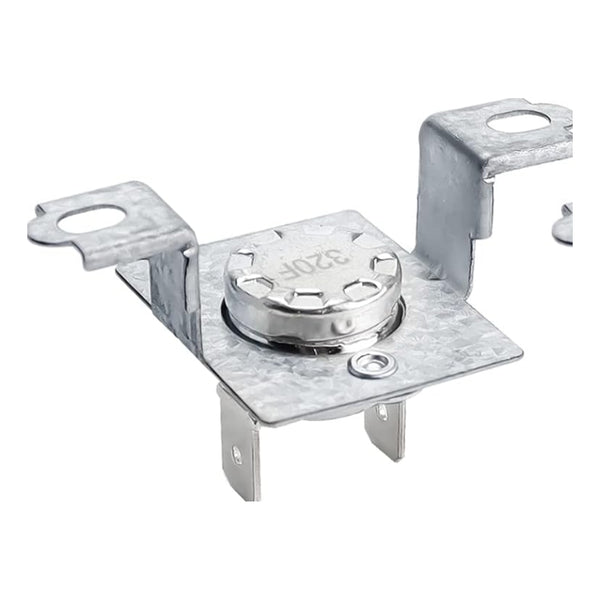

Built to match the original Samsung specification including the L shaped bracket, ceramic body, and quick connect terminals. This GP4 variant is the updated 4 pack version covering multiple Samsung thermal safety points. Replacing a blown fuse restores safe heating and prevents fire hazards caused by lint buildup.
Key Specs
-
Part Number: DC96-00887A-GP4
-
Also Marked: DC96-00887A, AP5913651, PS11742438, EAP11742438, 3966745
-
Kit Contents: 4 piece thermal safety kit (High limit fuse, thermal fuse, thermostat, and related safety components)
-
Type: Thermal cut-off fuse / High limit thermostat kit
-
Temperature Rating: 320°F (160°C) cut-off point
-
Voltage Rating: 240V AC, 60Hz compatible (passive safety device)
-
Terminals: 1/4 inch quick connect tabs
-
Compatible Brands: Samsung, Kenmore
-
Condition: New, OEM spec replacement
Fits Popular Samsung Electric Dryer Models
DV40J3000EW/A2, DV42H5000EW/A3, DV42H5200EW/A3, DV45H7000EW/A2, DV48H7400EW/A2, DV56H9000EP/A2, DVE50M7450W/A3, DVE50R5200W/A3, DVG50R5400W/A3, DVG50R5200W/A3, DV331AER/XAA, DV448AEP/XAA, DV5451AEW/XAA, DV219AEW/XAA and many more Samsung electric builds
Always confirm the model tag on the door frame or rear panel before ordering. Match the old fuse bracket number to DC96-00887A or DC96-00887A-GP4. This part is for electric dryers only, not gas dryer burners.
Symptoms This Fixes
-
Dryer heats for 5 to 15 minutes then goes cold
-
Drum tumbles but no heat after initial warm-up
-
Dryer will not restart heating until cooled down
-
Burning smell followed by complete heat loss
-
Multimeter shows open circuit across fuse terminals
Critical Installation Note
A thermal fuse blows because something else failed first. Never replace just the fuse without checking the root cause. First clean the entire vent system from the dryer to the outside wall. Check the blower wheel for lint jams and verify the cycling thermostat works. If you skip this step, the new fuse will blow again within days. Always disconnect power at the breaker before opening the rear panel. Photograph wire positions before disconnecting anything. Test continuity on the old fuse with a multimeter before declaring it bad.
What You Get

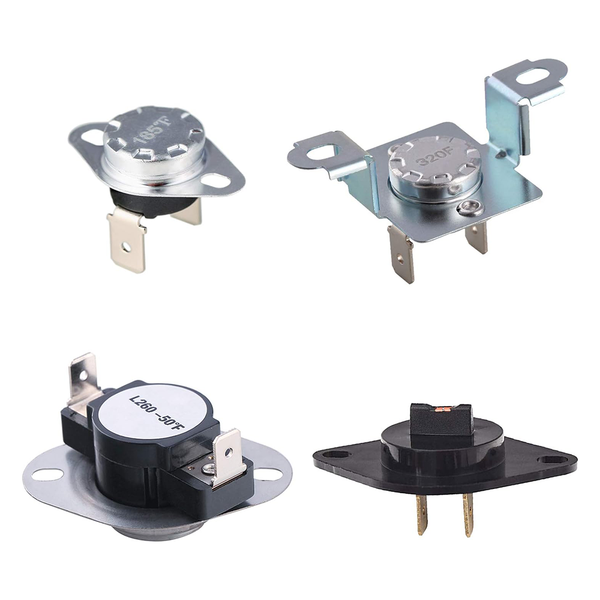

One DC96-00887A-GP4 4 piece thermal safety kit as shown. Includes high limit fuse, thermal fuse, thermostat, and related safety components. Mounting hardware not included unless noted. Ships from US stock for fast delivery.
Restore safe heating and prevent repeat breakdowns. Add to cart and leave your full dryer model number in the order notes if you want a quick compatibility check.
