Part Number: DC93-00154A
Cross Reference Numbers: DC97-14486E, DC47-00032A (inner coil only), 3282568, AP5582094, PS4216214, EAP4216214, PD00002235

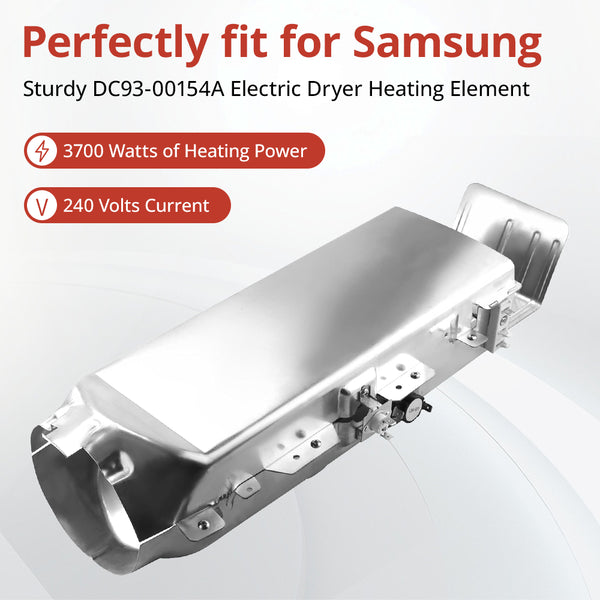

Pre-Installed Controls: L260-50F Hi-Limit Thermostat (DC47-00018A style), DC96-00887A Thermal Fuse
Wire Type: 3-wire heater canister (if your old unit has 2 wires to the coil, use DC97-14486A instead)
Fitment: Samsung front load electric dryers only (DV42H / DV45K / DV48J / DV50K / DV52J / DVE45 / DVE50 / DVE52 / DVE54 / DVE60 series and more; partial list below)
Type: Aftermarket complete heater assembly built to OEM-style specs (not a Genuine Samsung OEM part unless stated in title)
Key Features
-

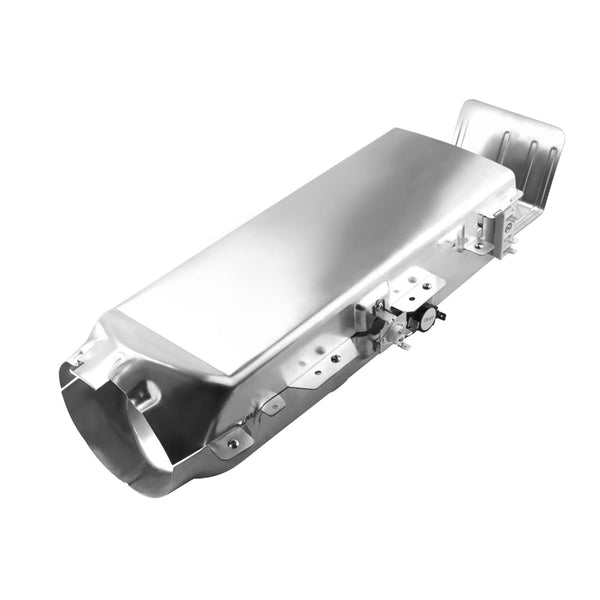

Complete Drop-In Canister — galvanized metal duct housing, 8-coil nickel-chromium heating element, pre-mounted hi-limit thermostat and thermal fuse, no loose parts to transfer
-
240V 3700W Rating (1500W at 120V leg), 3-wire spade connection to the board, restores full heat on dual-voltage Samsung electric dryers
-
L260-50F Hi-Limit Thermostat cuts power at 260F and resets 50F lower to stop overheating and scorched clothes
-
DC96-00887A Non-Resettable Thermal Fuse trips at 320F to prevent fire if airflow is blocked
-
Approx Size 19-1/2 x 5-1/8 x 7-3/4 inches with 5 inch round duct opening one end and 5-1/2 x 3-3/4 inch rectangular opening the other, matches original Samsung rear heater box
-
Fixes No-Heat and Low-Heat Complaints caused by open coil, blown fuse, stuck thermostat or cracked ceramic supports
-
Tool Light Install after rear panel removal, uses original mounting screws and spade connectors
What It Fixes
Replace your DC93-00154A heater assembly if you see:
-
Drum turns but no heat at all
-
Heat for a few minutes then shuts off
-
Clothes take two or three cycles to dry
-
Thermal fuse keeps blowing after replacement
-
Multimeter shows open continuity on the old coil or fuse
-
Old heater canister has 3 wires to the element coil (not 2)
Compatible Samsung Electric Dryer Models (Partial List)
DV42H5600EF/A3, DV42H5600EP/A3, DV42H5600EW/A3, DV45H6300EG/A3, DV45H6300EW/A3, DV45K6200EW/A3, DV45K6200EZ/A3, DV45K6500EV/A3, DV45K6500EW/A3, DV45K7100EW/A3, DV45K7600EW/A3, DV48J7700EW/A2, DV48J7770EP/A2, DV48J7770EW/A2, DV50K7500EV/A3, DV50K7500EW/A3, DV50K8600EV/A3, DV50K8600EW/A3, DV511AER/XAA, DV511AEW/XAA, DV520AEP/XAA, DV520AEW/XAA, DV52J8700EP/A2, DV52J8700EW/A2, DVE45A6400V/A3, DVE45A6400W/A3, DVE45M5500P/A3, DVE45M5500W/A3, DVE45M5500Z/A3, DVE45R6300C/A3, DVE45R6300P/A3, DVE45R6300V/A3, DVE45R6300W/A3, DVE50A8500V/A3, DVE50A8600E/A3, DVE50A8600V/A3, DVE50A8800V/A3, DVE50R8500V/A3, DVE50R8500W/A3, DVE52M7750V/A3, DVE52M7750W/A3, DVE52M8650V/A3, DVE52M8650W/A3, DVE54M8750V/A3, DVE54M8750W/A3, DVE54R7200V/A3, DVE54R7200W/A3, DVE54R7600C/A3, DVE54R7600V/A3, DVE54R7600W/A3, DVE55A7300E/A3, DVE55A7300V/A3, DVE55A7700V/A3, DVE55M9600V/A3, DVE55M9600W/A3, DVE60A9900V/A3, DVE60M9900V/A3, DVE60M9900W/A3, DVG60M9900V/A3, WH46DBH100EWA3, WH46DBH500EVA3, WH53DBH700EFA3 and more
If your exact model is not listed, send us your dryer model number and confirm it is electric (not gas) and the old heater has 3 wires before ordering.
Important Fitment Note
DC93-00154A is the 3-wire Samsung heater canister. If your original assembly has 2 wires going to the heating coil, you need DC97-14486A (2-wire variant), not this part. Always photograph the old thermostat terminal count and wire count before buying.
Specifications
-
Part Number: DC93-00154A
-
Product Type: Dryer Heating Element Assembly with Housing
-
Voltage and Wattage: 240V 3700W (1500W at 120V)
-
Coil: Nickel-chromium ceramic-insulated 8-coil, DC47-00032A inner element
-
Mounted Controls: L260-50F hi-limit thermostat, DC96-00887A thermal fuse
-
Material: Galvanized steel housing, ceramic terminals
-
Approx Size: 19-1/2 x 5-1/8 x 7-3/4 inches
-
Terminals: 3-wire spade connection
-
Package: 1 x Heater assembly (thermostat and fuse pre-installed)
Installation and Safety Note
WARNING: Turn off power at the breaker panel and lock it out before removing the rear panel. Photograph every wire position before disconnecting. Unbolt the old canister from the blower duct, lift it out, seat the new DC93-00154A assembly on the original gasket surface, reuse the original screws, reconnect spades exactly as photographed, then restore power and run a timed heat cycle to confirm recovery. If the new thermal fuse blows again, stop and check the exhaust vent for blockage before reordering.
Compatibility Disclaimer
This is an aftermarket replacement assembly. Samsung model names are used only to indicate compatibility. Not affiliated with or endorsed by Samsung Electronics.
