Bring the heat back to a cold tumbling dryer with a direct fit DC47-00019A heating element. This is the nickel chromium coil assembly mounted in the heater housing behind the rear panel that glows red and dries your clothes. If your Samsung electric dryer tumbles but blows cold air, takes two plus cycles to dry, shuts off mid cycle, or you smell a faint burn, the heating element is the first high wear part to test with a multimeter.
Built to match the original Samsung specification including ceramic insulators, restring spacers, and 5/16 inch male spade terminals. Swapping a broken coil restores full heat output and stops the control board from throwing long dry or no heat faults.
Key Specs
-
Part Number: DC47-00019A
-
Cross References: AP4201899, PS2038533, EAP2038533, 2068550, 35001247, 35001119, AP4045884, 1185561, ERDC47-00019A
-
Type: Electric dryer heating element coil assembly
-
Voltage: 240V AC, 60Hz (standard US electric dryer circuit, NOT 120V)
-
Wattage: 5300W
-
Coil Material: Nickel chromium alloy, pre strung on ceramic insulators
-
Terminals: 5/16 inch male spade
-
Compatible Brands: Samsung, Kenmore, Maytag, Amana, Whirlpool, Roper, Inglis
-
Condition: New, OEM spec replacement
Fits Popular Samsung Electric Dryer Models
DV40J3000EW/A2, DV42H5000EW/A3, DV42H5000ES, DV42H5200EW/A3, DV42H5200EP/A3, DV45H7000EW/A2, DV45H7000EP/A3, DV48H7400EW/A2, DV56H9000EP/A2, DVE50M7450W/A3, DVE50R5200W/A3, DV50F9A6EVW/A2, DV50F9A7EVP/A2, DV331AER/XAA, DV448AEP/XAA, DV5451AEW/XAA, DV219AEW/XAA and many more Samsung electric builds
Always confirm the model tag on the door frame or rear panel before ordering. Match the old element body number to DC47-00019A or any cross reference above. This part is for electric dryers only, not gas dryer burners.
Symptoms This Fixes
-
Drum turns but no heat
-
Clothes come out damp after a full cycle
-
Dryer runs too long or never satisfies the moisture sensor
-
Burning smell from the rear vent area
-
Multimeter reads open circuit on the old coil instead of 9 to 10 ohms
Why Replace As A Kit
A burnt element often trips the thermal fuse and high limit thermostat at the same time. Replacing only the coil can leave a weak fuse in place that shorts the new element again in weeks. Most US sellers ship DC47-00019A with DC47-00018A high limit thermostat, DC47-00016A thermal fuse, DC96-00887A high limit fuse, and DC32-00007A thermistor in one bag. Replacing all five takes one teardown and costs far less than a second service call.
Installation Tips
Cut power at the breaker, not just the plug. Pull the top and rear panel, photograph every wire position before disconnecting, release the heater can screws, slide the old element out, seat the new coil with insulators facing correct sides, reuse the original housing if your kit ships coil only. Clean the lint duct while the panel is off. A clogged vent is the number one cause of element burnout. Test with a timed dry cycle before closing the cabinet.
What You Get

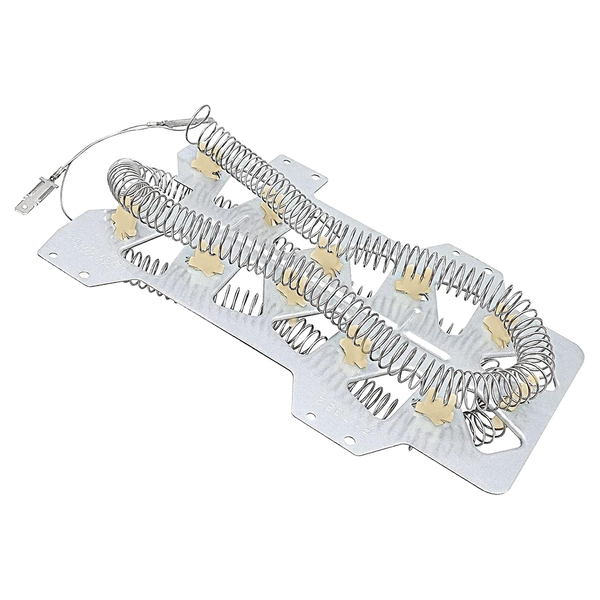

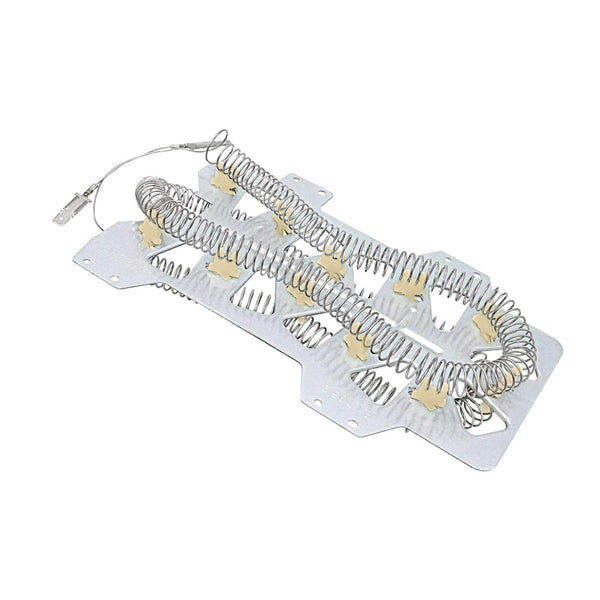

One DC47-00019A heating element with pre installed coil and ceramic insulators as shown. If you ordered the full kit version, the thermostats and fuses above are included. Mounting hardware not included unless noted. Ships from US stock for fast delivery.
Restore full heat and stop running double cycles. Add to cart and leave your full dryer model number in the order notes if you want a quick compatibility check.
