Bring a cold tumbling dryer back to full heat with this 8544771 heating element. This is the coiled resistor assembly behind no-heat and long-dry-time complaints on Whirlpool-family Cabrio, Duet, and HE2 platform dryers. Built to the published WP8544771 electrical and dimensional spec, it seats into the existing bottom-right heater housing and restores normal 240V drying temperature without replacing the whole rear panel.
What You Get
-

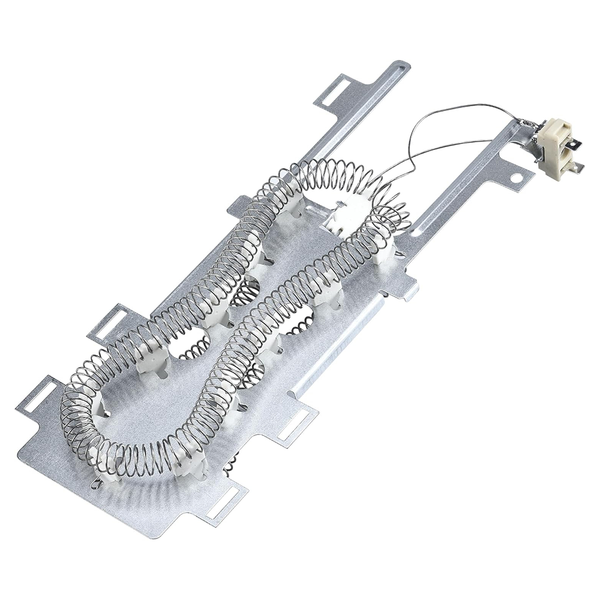

1 x 8544771 Heating Element with nickel-chromium coil, ceramic insulators, and restring pre-attached
-
2 x 5/16 inch male spade terminals
-
Element only – reuse your existing metal heater canister, or pair with thermal fuse and high-limit thermostat if doing a full safety refresh
Part Number Cross Reference
-
8544771 replaces: WP8544771, WP8544771VP, W10836011, AP6013115, AP3866035, PS11746337, PS990361, 1180054, 8544771R, DE4771, PAT7154072
Electrical And Size Specs
-
Voltage: 240V AC
-
Wattage: 5400W
-
Coil: Nickel-chromium resistance wire, approx 85 percent NiCr
-
Terminals: Two 5/16 inch male spade tabs
-
Dimensions: Approx 13 7/8 inches L x 6 1/2 inches W x 2 1/2 inches H
-
Mount: Bottom-right heater housing, flat-can style
Compatible Brands
Fits electric dryers and washer dryer combos from Whirlpool, Kenmore 110 series, Maytag, Amana, Roper, Crosley, Inglis, Estate, Admiral, KitchenAid built on the Cabrio, Duet, HE2, Oasis, and Performa dryer platforms.
Sample Fitment Models
Whirlpool WED8300SW0, WED8500SR0, WED9200SQ0, WED9400SW0, WED9500TW0, WED9600TW0, WED9750WW0, WED85HEFW0, WED92HEFC0, MEDB850WB0, MED6000XW0, MED7000XW0, YWED85HEFW2
Kenmore 11067042600, 11068092701, 11077086600, 11087088602, 11087571601
Maytag MED3000BW0, MED4000BW0, MED4200BG0, MEDB200VQ0, MEDB400VQ1, MEDB800VQ0, MEDB950YW0
Amana NED5800DW0, NED7300WW1
Always confirm your dryer model tag and old element stamp before ordering.
Symptoms This Fixes
-
Dryer tumbles but produces no heat
-
Two or more cycles to dry one load
-
Visible broken sagging or burnt coil inside the heater box
-
Burning smell or scorched clothes from a shorted coil
-
Dryer shuts off early because the high-limit or thermal fuse tripped
-
Multimeter shows no continuity across the two element terminals
Why Replace Element Alone Or As A Kit
The 8544771 is the heat source. If your thermal fuse or high-limit thermostat still reads closed with a meter, you only need the coil. If the dryer lost heat suddenly or smells burnt, swap the 279973 thermal cut-off kit, 3392519 thermal fuse, and 279816 thermostat in the same visit to avoid a second teardown. Restricted airflow is the leading cause of repeated element failure, so clean the lint duct while the panel is off.
Install Notes
-
Unplug the dryer at the 240V breaker before removing the rear panel, live terminals will arc
-
Photograph the existing wire positions, disconnect the two spade tabs, remove retaining screws, lift the old coil out
-
Seat the new 8544771 without letting the coil touch the metal can, secure screws, reconnect wires per your photo
-
Vacuum the heater housing and blower area, lint packed against the coil is what killed the last one
-
Basic 1/4 inch nut driver, 5/16 inch nut driver, Phillips screwdriver, and multimeter, 30 to 60 minutes for most DIYers
Quality Note
Aftermarket part engineered to meet the OEM-form 240V 5400W rating and 13 7/8 x 6 1/2 x 2 1/2 inch footprint. Brand names and model numbers are used for compatibility identification only. Not a Whirlpool-boxed OEM part, but electrically and dimensionally matched to WP8544771.
