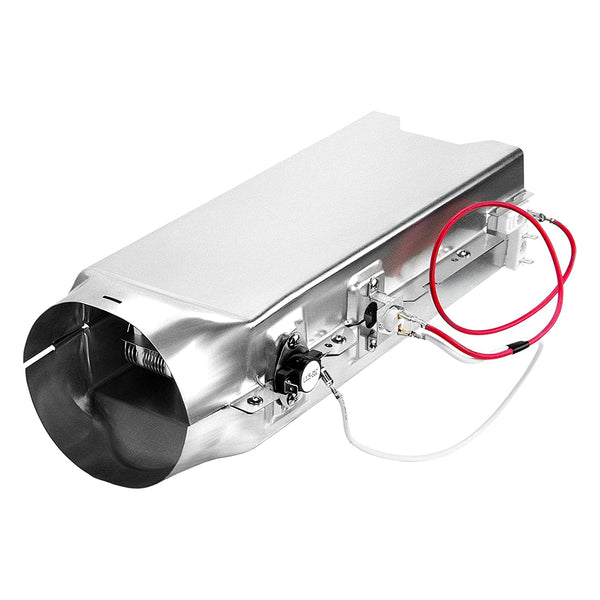

5301EL1001J LG dryer heating element assembly – 240V 5400W galvanized steel housing with pre-installed 3-terminal hi-limit thermostat and thermal fuse
Aibopart

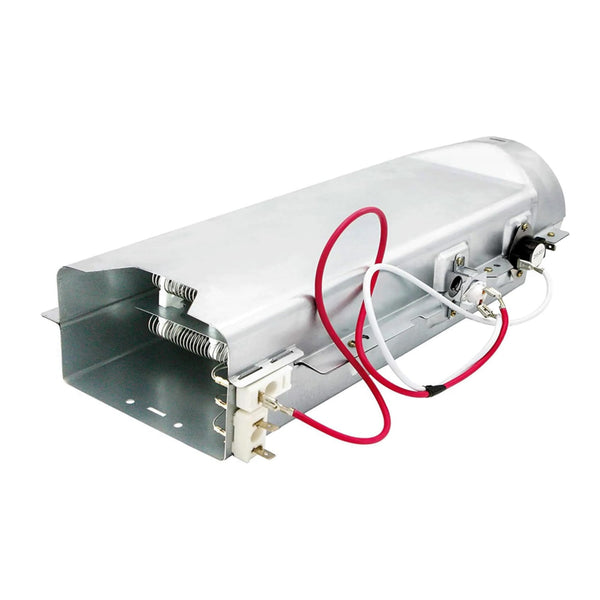

5301EL1001J Dryer Heating Element Assembly with Housing High Limit Thermostat and Thermal Fuse Replacement for LG and Kenmore Elite Electric Dryers

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Part Number: 5301EL1001J

Cross Reference Numbers: 5301EL1001A, 5301EL1001E, 5301EL1001G, 5301EL1001H, 5301EL1001U, 5301EL1001W, AP4439759, AP5072170, PS3527790, PS3527791, AH3527791, EAP3527791, 1377645, AEG72910301

Thermostat and Fuse On Assembly: 6931EL3001F (3-terminal hi-limit), 6931EL3003D (thermal fuse)

Fitment: LG front load electric dryers and Kenmore Elite 796-series electric dryers that use the rear-mounted round-duct heater canister (partial model list below)

Type: Aftermarket complete heater assembly built to OEM-style specs (not a Genuine LG OEM part unless stated in title)

Key Features

  • Complete Drop-In Assembly — metal housing, ceramic-insulated nickel-chromium coil, pre-wired hi-limit thermostat and thermal fuse already mounted, no loose parts to transfer

  • 240V 5400W Rating with 2-5/16 inch male terminals, restores full heat output on dual-voltage LG electric dryers

  • 3-Terminal Hi-Limit Thermostat 6931EL3001F — if your old assembly has three spade lugs at the thermostat, 5301EL1001J is the correct cross, not the 2-terminal 5301EL1001A

  • Non-Resettable Thermal Fuse 6931EL3003D built into the canister trips at overheating to protect the dryer

  • Approx Size 16-3/16 x 7-1/2 x 5 inches with 5 inch round outlet on one end and 5-3/8 x 3-3/4 inch rectangular opening on the other, matches original LG rear heater box

  • Fixes No-Heat and Low-Heat Complaints caused by open coil, blown fuse, stuck thermostat or cracked ceramic supports

  • Tool Light Install after rear panel removal, uses original mounting screws and spade connectors

What It Fixes

Replace your 5301EL1001J heater assembly if you see:

  • Drum turns but no heat at all

  • Heat for a few minutes then shuts off

  • Clothes take two or three cycles to dry

  • Thermal fuse keeps blowing after replacement

  • Multimeter shows open continuity on the old coil or fuse

  • Error codes pointing to heater or thermostat (check your model manual)

Compatible LG Models (Partial List)

DLE0442W, DLE1310W, DLE2050W, DLE2101W, DLE2140W, DLE2240W, DLE2250W, DLE2301W, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2522W, DLE2532W, DLE3733W, DLE3777W, DLE4850W, DLE4870W, DLE4901W, DLE5002W, DLE5070W, DLE5955W, DLE5977W, DLE5977S, DLE5977B, DLE7177WM, DLE8377WM, DLE9577WM, DLEX2450W, DLEX2501W, DLEX2550W, DLEX2650W, DLEX3070W, DLEX3250W, DLEX3550W, DLEX3570W, DLEX3600V, DLEX3700W, DLEX3800W, DLEX4070V, DLEX4170W, DLEX4270W, DLEX5000W, DLEX5101W, DLEX5170W, DLEX5680W, DLEX5780WE, DLEX6001W, DLEX7000W, DLEX7100W, DLEX7600WE, DLEX7700WE, DLEX8000W, DLEX8100W, DLEX8377WM, DLEX8500V, DLEX9000W, DLG0452W, DLG1320W, DLG2522W, DLG3744W, DLG3788W, DLG5932W, DLG5966W, DLG5988W, DLG7188WM, DLG8388WM, DLG9588WM, GD1329LED, GD1329QES, GDP1329QES, RV1306BT, RV1321AS, TD-V10031E and more

Compatible Kenmore Elite Models (Partial List)

79669002000, 79669152000, 79680021900, 79680272900, 79680311900, 79680441900, 79681022900, 79681172210, 79681282310, 79681382410, 79681473210, 79681532210, 79681548210, 79681722010, 79688032900, 79689032000, 79690021900, 79690272900, 79690441900, 79691182310, 79691548210, 81072, 81172, 81392, 81548, 81549, 98842

If your exact model is not listed, send us your dryer model number and confirm it is electric (not gas) before ordering. Gas LG dryers do not use this 240V heater canister.

Specifications

  • Part Number: 5301EL1001J

  • Product Type: Dryer Heating Element Assembly with Housing

  • Voltage and Wattage: 240V 5400W (3500W at 208V)

  • Coil: Nickel-chromium ceramic-insulated, 85 percent NiCr content class

  • Mounted Controls: 6931EL3001F 3-terminal hi-limit thermostat, 6931EL3003D thermal fuse

  • Material: Galvanized steel housing, ceramic terminals

  • Approx Size: 16-3/16 x 7-1/2 x 5 inches

  • Terminals: 2 x 5/16 inch male spades for power leads

  • Package: 1 x Heater assembly (thermostat and fuse pre-installed)

Installation and Safety Note

WARNING: Turn off power at the breaker panel and lock it out before removing the rear panel. Photograph every wire position before disconnecting. Unbolt the old canister from the blower duct, lift it out, seat the new 5301EL1001J assembly on the original gasket surface, reuse the original screws, reconnect spades exactly as photographed, then restore power and run a timed heat cycle to confirm recovery. If the new thermal fuse blows again, stop and check the exhaust vent for blockage before reordering.

Compatibility Disclaimer

This is an aftermarket replacement assembly. LG and Kenmore model names are used only to indicate compatibility. Not affiliated with or endorsed by LG Electronics or Kenmore.
