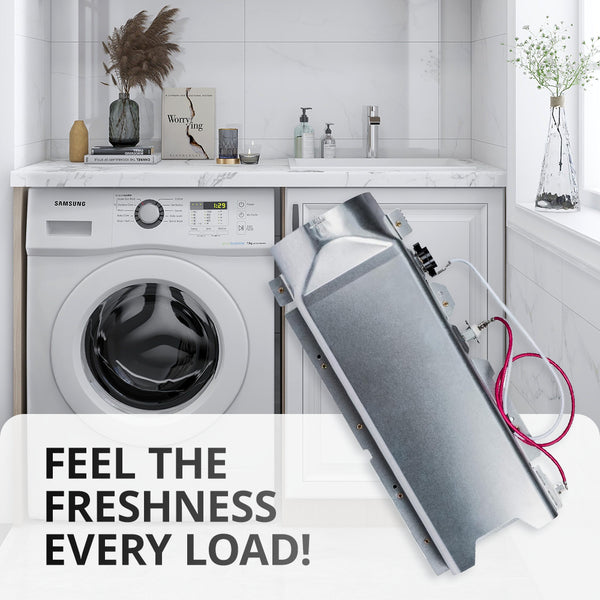

5301EL1001A LG dryer heating element assembly – 240V 5400W galvanized steel housing with 2-terminal hi-limit thermostat and thermal fuse pre-installed
Aibopart

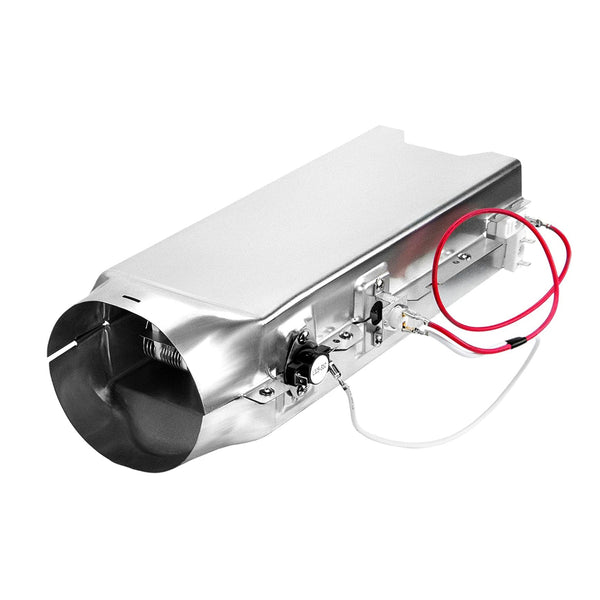

5301EL1001A Dryer Heating Element Assembly with Housing 2-Terminal Hi-Limit Thermostat and Thermal Fuse Replacement for LG and Kenmore Elite Electric Dryers

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Part Number: 5301EL1001A

Cross Reference Numbers: 5301EL1001E, 5301EL1001G, 5301EL1001H, 5301EL1001S, 5301EL1001U, 5301EL1001W, AEG72910301, AP4439759, AP5072170, PS3527790, PS3527791, AH3527791, EAP3527791, 1377645

Pre-Installed Controls: 6931EL3001E (2-terminal hi-limit thermostat L125-31C), 6931EL3003D (thermal fuse)

Fitment: LG front load electric dryers and Kenmore Elite 796-series electric dryers whose original heater uses a 2-spade hi-limit thermostat (partial model list below)

Type: Aftermarket complete heater assembly built to OEM-style specs (not a Genuine LG OEM part unless stated in title)

Key Features

  • Complete Drop-In Assembly — galvanized metal housing, ceramic-insulated nickel-chromium coil (up to 85 percent NiCr), pre-wired 2-terminal hi-limit thermostat 6931EL3001E and thermal fuse 6931EL3003D already mounted, no loose parts to transfer

  • 240V 5400W Rating (3500W at 208V) with 2-5/16 inch male power terminals, restores full heat output on dual-voltage LG electric dryers

  • 2-Terminal Design — if your old thermostat has two spade lugs, 5301EL1001A is the correct cross; if it has three lugs, use 5301EL1001J instead

  • Non-Resettable Thermal Fuse 6931EL3003D built into the canister trips at overheating to protect the dryer

  • Approx Size 16-3/16 x 7-1/2 x 5 inches with 5 inch round outlet on one end and 5-3/8 x 3-3/4 inch rectangular opening on the other, matches original LG rear heater box

  • Fixes No-Heat and Low-Heat Complaints caused by open coil, blown fuse, stuck thermostat or cracked ceramic supports

  • Tool Light Install after rear panel removal, uses original mounting screws and spade connectors

What It Fixes

Replace your 5301EL1001A heater assembly if you see:

  • Drum turns but no heat at all

  • Heat for a few minutes then shuts off

  • Clothes take two or three cycles to dry

  • Thermal fuse keeps blowing after replacement

  • Multimeter shows open continuity on the old coil or fuse

  • Old thermostat has exactly two spade terminals (not three)

Compatible LG Models (Partial List)

DLE0442W, DLE1310W, DLE2050W, DLE2101W, DLE2140W, DLE2240W, DLE2250W, DLE2301W, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2522W, DLE2532W, DLE2601W, DLE3733W, DLE3733S, DLE3777W, DLE4850W, DLE4870W, DLE4901W,
