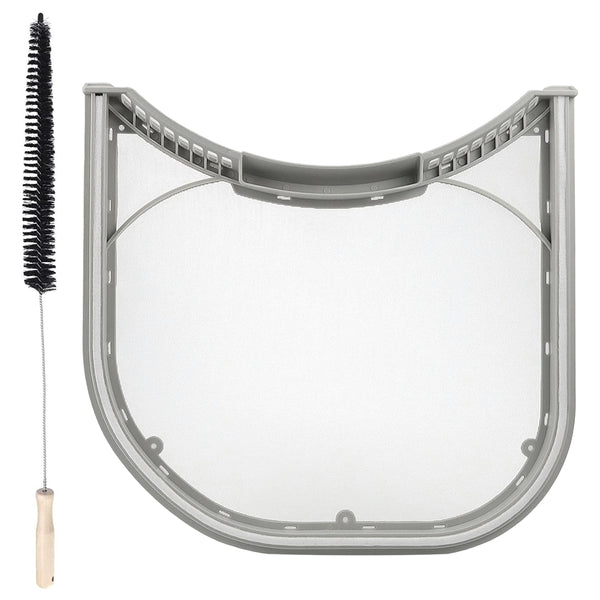

5231EL1003B LG dryer lint filter screen with felt seal and 30-inch vent cleaning brush bundle – gray ABS frame and fine mesh
Aibopart

5231EL1003B with brush Dryer Lint Filter Screen with Felt Seal and Lint Vent Cleaner Brush Replacement for LG and Kenmore Elite Dryers

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Part Number: 5231EL1003B

Bundle Includes: 1 x 5231EL1003B Lint Filter Screen with Felt Seal + 1 x Clothes Dryer Lint Vent Trap Cleaner Brush

Cross Reference Numbers: 5231EL1002E, 5231EL1003A, 5231EL1003C, 5231EL1003E, AP4440606, PS3527578, AH3527578, EAP3527578, EA3527578, 1266857

Fitment: LG front load electric and gas dryers plus select Kenmore Elite dryers (partial model list below)

Type: Aftermarket replacement lint screen with accessory cleaning brush (not a Genuine LG OEM part unless stated in title)

Key Features

  • Direct Slide-In Fit for LG dryers using 5231EL1003B, drops into the original lint trap slot with no cutting or modification

  • ABS Plastic Frame with Fine Mesh Screen and Attached Felt Rim Seal to stop air bypass and keep exhaust airflow strong along the screen edge

  • Bonus Lint Vent Cleaner Brush (flexible approx 30 inch handle with nylon bristles) reaches into the dryer exhaust duct to pull out packed lint the screen cannot catch

  • Traps Lint Fibers and Debris from tumbling clothes, helping prevent vent clogging, long dry cycles, overheating and fire risk

  • Restores Drying Efficiency by keeping the airflow path clear so loads dry faster and the heating element runs cooler

  • Bigger Than 5231EL1001C at approx 12.2 x 11.8 inches (310 x 299 mm) with felt edge, so it does not fit dryers that use the smaller 5231EL1001C frame

  • Tool-Free Screen Swap in under 1 minute, just pull the old screen out and slide the new one in

What It Fixes

Replace your 5231EL1003B lint filter and clean the vent if you see:

  • Torn or bent screen mesh

  • Cracked or warped plastic frame

  • Felt seal missing compressed or falling off the original

  • Lint escaping around the edges onto clothes

  • Dryer takes longer than normal or shuts off early

  • Little to no airflow at the exterior vent flap

Compatible LG Models (Partial List)

DLE0442W, DLE1310W, DLE2050W, DLE2101W, DLE2140W, DLE2240W, DLE2250W, DLE2301W, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2522W, DLE2532W, DLE3733W, DLE3777W, DLE5955W, DLE5977W, DLE7177WM, DLE8377WM, DLE9577WM, DLEX2450W, DLEX2501W, DLEX2550W, DLEX2650W, DLEX3070W, DLEX7177WM, DLEX8377WM, DLG0452W, DLG1320W, DLG2522W, DLG2524W, DLG2532W, DLG3744W, DLG3788W, DLG5932W, DLG5966W, DLG5988W, DLG7188WM, DLG8388WM, DLG9588WM, DLGX8388WM, GD1329LED, GD1329QES, GDP1329QES, RV1306BT, TD-V10031E and more

Compatible Kenmore Elite Models (Partial List)

79680021900, 79680272900, 79680311900, 79680318900, 79680441900, 79680448900, 79681172210, 79681272210, 79681372210, 79681373210, 79688842800, 79688852800, 79690021900, 79690272900, 79690441900, 79691172210, 79691392610, 79698842800, 79698852800, 81172, 81392, 90311, 98842

If your exact model is not listed, send us your dryer model number before ordering and we will confirm fitment.

Specifications

  • Lint Filter Part Number: 5231EL1003B

  • Lint Filter Type: Dryer Lint Screen Assembly with Felt Seal

  • Material: ABS plastic frame, fine mesh screen, felt rim

  • Color: White or gray frame depending on batch

  • Filter Approx Size: 12.2 x 11.8 x 1.0 inches

  • Brush: Flexible nylon bristle vent cleaning brush, approx 30 inches

  • Package: 1 x Lint filter screen + 1 x Vent cleaner brush

Installation and Cleaning Note

Unplug the dryer before service. Pull out the old lint screen, vacuum or wipe loose lint in the slot, then slide the new filter fully into place until the felt edge seats flush. Every few months, detach the exhaust hose or use the included brush through the vent opening to sweep out packed lint behind the dryer. Clean the screen after every load.

Compatibility Disclaimer

This is an aftermarket replacement part with accessory brush. LG, Kenmore and related model names are used only to indicate compatibility. Not affiliated with or endorsed by LG Electronics or Kenmore.
