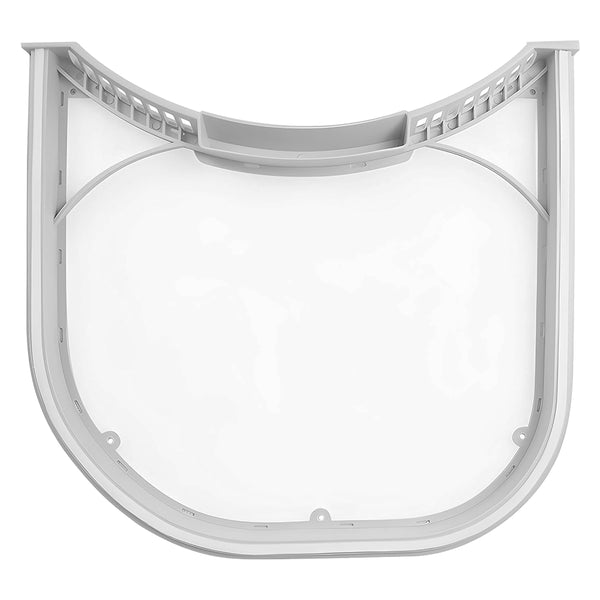

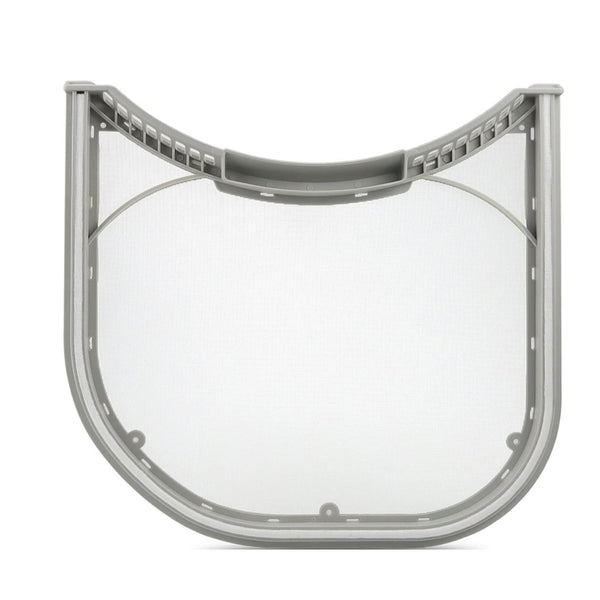

5231EL1003B LG dryer lint filter screen replacement with felt rim seal – gray ABS frame and fine mesh
Aibopart

5231EL1003B Dryer Lint Filter Screen with Felt Seal Replacement for LG and Kenmore Dryers

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

Cross Reference Numbers: 5231EL1002E, 5231EL1003A, 5231EL1003C, 5231EL1003E, AP4440606, PS3527578, AH3527578, EA3527578, EAP3527578, 1266857

Fitment: LG front load electric and gas dryers plus select Kenmore Elite dryers (partial model list below)

Type: Aftermarket replacement lint screen built to OEM-style dimensions with felt rim (not a Genuine LG OEM part unless stated in title)

Key Features

  • Direct Slide-In Fit for LG dryer models using 5231EL1003B, drops into the original lint trap slot with no cutting or modification

  • ABS Plastic Frame with Fine Mesh Screen and attached felt rim seal to stop air bypass and keep exhaust airflow strong

  • Traps Lint Fibers and Debris from tumbling clothes, helping prevent vent clogging, long dry cycles, overheating and fire risk

  • Bigger Than 5231EL1001C at approx 12.2 x 11.8 inches (310 x 299 mm) with felt edge, so it does not fit dryers that use the smaller 5231EL1001C frame

  • Restores Drying Efficiency by keeping the airflow path clear so loads dry faster and the heating element runs cooler

  • Tool-Free Install in under 1 minute, just pull the old screen out and slide the new one in

What It Fixes

Replace your 5231EL1003B lint filter if you see:

  • Torn or bent screen frame

  • Cracked plastic side on the old filter

  • Felt seal missing or compressed on the original

  • Lint escaping around the edges onto clothes

  • Dryer takes longer than normal or shuts off early

Compatible LG Models (Partial List)

DLE0442W, DLE1310W, DLE2050W, DLE2101W, DLE2140W, DLE2240W, DLE2250W, DLE2301W, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2522W, DLE2532W, DLE3733W, DLE3733S, DLE3777W, DLE5955W, DLE5955G, DLE5977W, DLE5977S, DLE5977B, DLE7177WM, DLE8377WM, DLE9577WM, DLEX2450W, DLEX2501W, DLEX2550W, DLEX2650W, DLEX3070W, DLEX7177WM, DLEX8377WM, DLG0452W, DLG1320W, DLG2522W, DLG2524W, DLG2525S, DLG2526W, DLG2532W, DLG3744W, DLG3788W, DLG5932W, DLG5966W, DLG5988W, DLG5988S, DLG7188WM, DLG8388WM, DLG9588WM, DLGX0002TM, DLGX8388WM, GD1329LED, GD1329QES, GDP1329QES, RV1306BT, TD-V10031E and more

Compatible Kenmore Models (Partial List)

79680021900, 79680272900, 79680311900, 79680441900, 79681172210, 79690441900, 81172, 81272, 81392, 90311, 98842

If your exact model is not listed, send us your dryer model number before ordering and we will confirm fitment.

Specifications

  • Part Number: 5231EL1003B

  • Product Type: Dryer Lint Filter Screen with Felt Seal

  • Material: ABS plastic frame, fine mesh screen, felt rim

  • Color: Gray or white frame depending on batch

  • Approx Size: 12.2 x 11.8 x 0.8 inches

  • Package: 1 x Lint filter screen

Installation Note

Unplug the dryer before service. Pull out the old lint screen, clear any built-up lint in the slot, then slide the new filter fully into place until the felt edge seats flush. Clean the screen after every load to extend dryer life.

Compatibility Disclaimer

This is an aftermarket replacement part. LG, Kenmore and related model names are used only to indicate compatibility. Not affiliated with or endorsed by LG Electronics or Kenmore.
