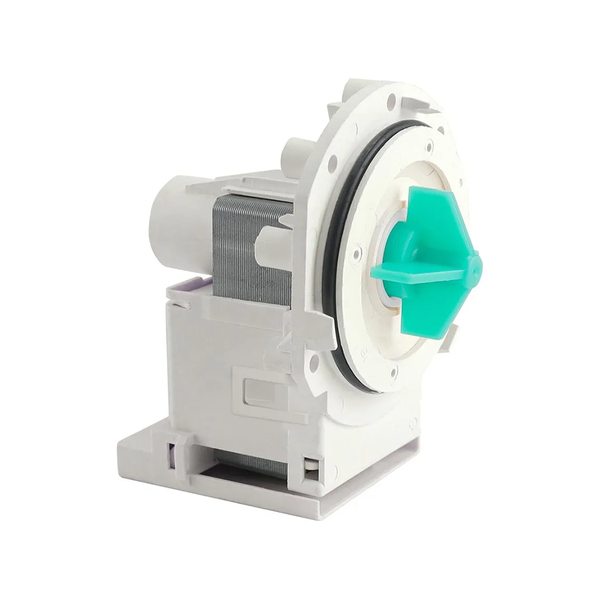

Restore proper water circulation and drainage in your LG or Kenmore front load washer with a direct fit 4681EA2002H circulation pump motor. This is the white body pump mounted under the tub that recirculates wash water during the cycle and assists drain flow on combo washer dryer units. If your LG washer will not drain, leaves water at the bottom, makes a loud buzzing with no flow, or clothes come out soapy, this pump motor is the first moving part to test before replacing the board or hose.
Built to match the original LG specification including the white plastic housing, single outlet port, and 2 wire harness with polarized terminals. Swapping a weak or seized motor restores full recirc pressure, stops standing water, and protects the drain hose from back pressure.
Key Specs
-
Part Number: 4681EA2002H
-
Cross References: 4681EA2001S, 4681EA2002D, 4681EA2002K, EAU61383518, AP4438603, PS3523285, AH3523285, EA3523285, 1461702, LP2002H
-
Type: Washer circulation pump motor (also used as drain assist on some LG combos)
-
Voltage: 120V AC, 60Hz (standard US household power)
-
Wattage: 30W
-
Body Color: White or off white
-
Terminals: 2 wire polarized harness, black wire left, blue wire right
-
Compatible Brands: LG, Kenmore
-
Condition: New, OEM spec replacement
Fits Popular LG Washer Models
WM2650HRA, WM2650HWA, WM2677HBM, WM2677HSM, WM2677HWM, WM2688HNMA, WM2688HWM, WM2801HRA, WM2801HWA, WM3070HRA, WM3070HWA, WM3360HRCA, WM3360HWCA, WM3470HVA, WM3470HWA, WM3550HVCA, WM3550HWCA, WM3632HW, WM3677HW, WM3875HVCA, WM3875HWCA, WM3987HW, WM3988HWA, WM3997HWA, WM4070HVA, WM4070HWA, WM4370HKA, WM4370HWA, WM5000HVA, WM5000HWA, WM8000HVA, WM8000HWA, WM9000HVA, WM9000HWA, WM2450HRA, WM2496HWM, WM2501HVA, WM2501HWA, WM0642HW, WM0742HWA and many more LG front load builds
Also fits Kenmore elite front load washers under 796.4xxxxx series such as 796404419, 796410229, 7964154211, 7964172201, 796421999
Always confirm the model tag on the door frame or rear panel before ordering. Match the old pump body number to 4681EA2002H or any cross reference above.
Symptoms This Fixes
-
Washer will not drain after spin
-
Standing water left at the bottom of the tub
-
Pump buzzes or hums but no water moves
-
Clothes come out soapy or under rinsed
-
Slow recirc during wash cycle, weak spray
Why Replace Instead of Guessing
A failing circulation pump drops water pressure inside the tub, tricks the board into thinking the drain is blocked, and can overwork the separate drain pump. Replacing this 120V 30W motor takes about 30 to 45 minutes on most LG front loaders. Unplug the washer, shut off the water supply, pull the front lower access panel, photograph the wire positions, release the hose clamps, unplug the 2 wire harness, twist the pump lock ring, and seat the new motor in reverse order. Run a quick rinse and spin to confirm flow before closing the panel.
What You Get
One 4681EA2002H circulation pump motor as shown with 2 wire harness attached. Hose clamps not included unless noted. Ships from US stock for fast delivery.
Restore full circulation and stop hand bailing water. Add to cart and leave your full washer model number in the order notes if you want a quick compatibility check.
