3387134 Cycling Thermostat and 3392519 Thermal Fuse Dryer Repair Combo

Part Number / SKU Contact for OEM
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana (Universal Fit)
Primary Appliance Household Appliance
Material Heavy-Duty ABS Plastic / Steel
Inquire Now

For wholesale pricing, bulk orders, and OEM services, please submit an inquiry. Our sales team will respond with a custom quote within 1-2 business days.

✉ Direct Corporate Email: sale@aibopart.com
☎ Wholesale Hotline: 0086 13296868024

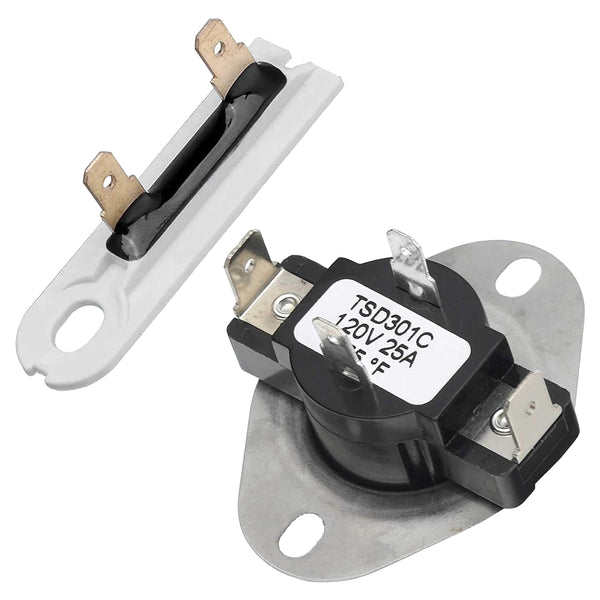

This money saving combo includes one 3387134 dryer cycling thermostat and one 3392519 dryer thermal fuse. Both are direct replacement parts for Whirlpool built electric and gas dryers. The cycling thermostat controls drum temperature by switching the heater on and off, while the thermal fuse is a one time safety device that cuts all power if the dryer overheats. Together they solve the most common Whirlpool family dryer no heat and overheating complaints without calling a repair tech.

What You Get

  • 1 x 3387134 Dryer Cycling Thermostat rated L155-25, opens at 155 degrees Fahrenheit, closes around 130 degrees Fahrenheit

  • 1 x 3392519 Dryer Thermal Fuse non resettable, trips at 196 degrees Fahrenheit

  • Both parts meet OEM style specifications and use standard push on spade terminals

  • No special tools required beyond a 1/4 inch nut driver and multimeter for testing

Key Benefits

  • Fixes No Heat And Overheat At Once – Covers both ends of the temperature failure range in one order

  • OEM Cross Reference Fit – Matches WP3387134 and WP3392519 used across Whirlpool family dryers

  • Beginner Friendly DIY – Back panel or blower housing access, 20 to 40 minute swap

  • Prevents Repeat Failures – Replacing both at the same time avoids a second teardown two weeks later

  • Far Cheaper Than A New Dryer – Restores an aging dryer for a fraction of replacement cost

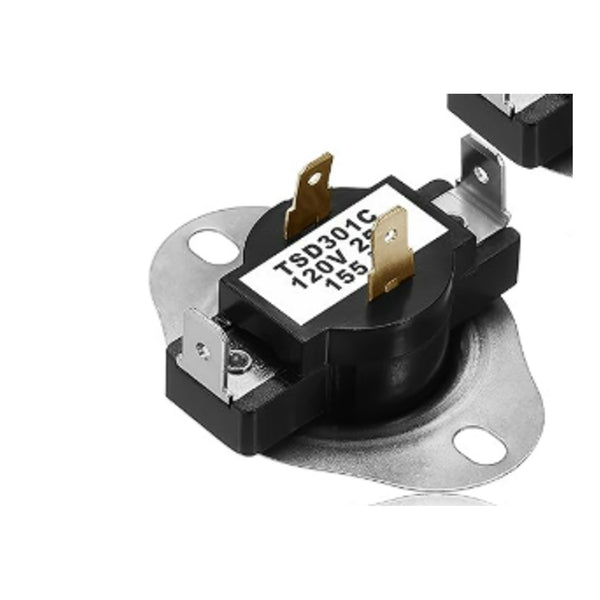

3387134 Thermostat Specifications

  • Part Number: 3387134 / WP3387134

  • Type: Cycling thermostat with internal bias heater

  • Rating: L155-25

  • Terminals: Two 1/4 inch spade and two 3/16 inch spade

  • Mounting: One screw to blower housing

  • Replaces: 2011, 306910, 3387135, 3387139, WP3387134VP, AP6008270, PS11741405, ET187

3392519 Thermal Fuse Specifications

  • Part Number: 3392519 / WP3392519

  • Type: Non resettable thermal fuse

  • Trip Temperature: 196 degrees Fahrenheit (91 degrees Celsius)

  • Terminals: Two 3/16 inch spade

  • Mounting: Blower housing or heater housing by model

  • Replaces: 3388651, 694511, 80005, WP3392519VP, AP6008325, PS11741460, ET401, G4AP0500

Compatible Brands

Whirlpool, Kenmore, Maytag, Amana, Roper, KitchenAid, Crosley, Inglis, Estate, Admiral, Magic Chef

Common Symptoms This Combo Fixes

  • Dryer will not start

  • No heat or low heat

  • Heater stays on and clothes scorch

  • Dryer shuts off early in the cycle

  • Takes two or three cycles to dry a load

  • Auto dry timer never advances

  • Cabinet runs hot or smells like burning lint

Installation Note

Always unplug the dryer before opening the panel. Test the old thermostat for room temperature continuity and the old fuse for continuity before assuming which one failed. A blown 3392519 thermal fuse almost always means restricted airflow, so clean the lint screen, transition duct, and exterior vent and check the blower wheel before power is restored. If the high limit thermostat 3977767 or heating element 279838 also looks damaged, replace them in the same visit.

Fitment Reminder

Whirlpool platform dryers share part numbers across many badge brands, but model year and gas versus electric build still matter. Match your original stamped part number or send us your full dryer model tag and we will confirm fit before shipment.
